Product Description

The LOCATOR^® Implant Attachment System is designed for use with overdentures or partial dentures, retained in whole or in part, by endosseous implants in the mandible or maxilla.

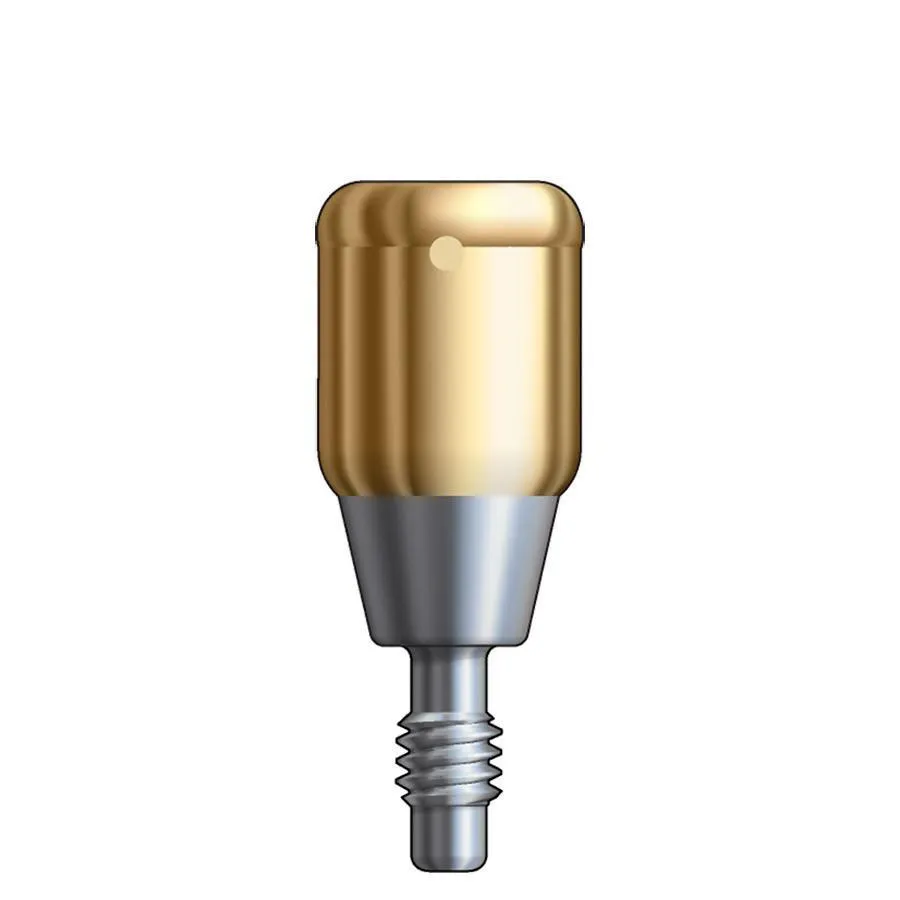

Locator Abutment Features

• Lowest Vertical Height: The total height of the Locator Attachment (abutment plus male) is only 3.17 mm on an externally hexed implant, and 2.5 mm on a non-hexed implant.
• Locating Design: Self-locating design allows a patient to easily seat their overdenture without the need for accurate alignment of the attachment components.
• Retention Inside And Out: The patented Dual Retention innovation provides the Locator Attachment with greater retention surface area than ever before available with other attachments. A combination of inside and outside retention ensures the longest lasting performance.
• Rotational Pivoting Action: The design of the pivoting Locator Male allows a resilient connection for the prosthesis without any resulting loss of retention. The retentive nylon male remains completely in contact with the abutment socket while its titanium denture cap has a full range of rotational movement over the male.
• Use With Non-Parallel Implants: The Locator Replacement Males can be used to restore an implant with up to 10 degrees of divergence (20 degrees between implants). The Locator Extended Range Replacement Males can accommodate a divergent implant between 10 and 20 degrees (40 degrees between implants).
